PU Injection Waterproofing KL for Concrete Leak Repair
Targeted polyurethane injection for suitable water-bearing concrete cracks and joints, based on the leak source, substrate condition and site access.
*Base rate per injection point. Minimum call-out fee applies. Final quotation confirmed upon crack & site review.
Active water seepage through concrete walls, slabs, and ceilings is a disruptive maintenance challenge for property owners in Kuala Lumpur. When water travels through hairline cracks or cold construction joints in a reinforced concrete structure, identifying the source and selecting the correct repair method requires technical care.
Polyurethane (PU) injection is considered for certain active leaks through concrete cracks, joints, or internal voids. Rather than applying a superficial surface sealant, PU injection targets the water pathway within the concrete itself. However, the correct repair method depends entirely on the leak source, substrate condition, site access, and material system. A thorough assessment comes before recommending injection.
1. PU Injection and PU Grouting: What the Terms Mean
In the Malaysian building industry, several related terms describe polyurethane leak-sealing technology:
- PU Injection: The controlled pumping of liquid polyurethane resin into drilled ports intersecting a crack.
- PU Grouting: The industry term commonly used by contractors and building managers for polyurethane pressure grouting.
- Polyurethane Injection Waterproofing: The formal engineering description of chemical grout injection for water-stopping.
- Polyurethane Grout Injection: The specific application of hydrophilic or hydrophobic polyurethane resins into concrete voids.
In practical contractor terms, “PU grouting” and “PU injection” refer to the same chemical water-stopping technique. The injected resin reacts chemically with moisture inside the crack, expanding rapidly into a dense, closed-cell foam or flexible gel that fills the void and halts active seepage. It is important to note that not every type of pressure grouting is identical; cementitious grouting and epoxy injection serve different engineering purposes.
2. When PU Injection May Be Suitable
PU injection is a specialist repair method designed for specific water-ingress scenarios. It is evaluated for:
- Active Water Seepage Through Concrete Cracks: Where water is actively weeping or dripping through visible hairline-to-medium concrete fissures.
- Water-Bearing Construction Joints: Cold joints or pour breaks in reinforced concrete slabs that allow water penetration during sustained rain.
- Localized Concrete Ceiling or Slab Leaks: Inter-floor leakage where water seeps through an upper concrete floor slab, often visible as damp rings on the underside ceiling.
- Concrete Wall Seepage: Retaining or boundary concrete walls experiencing groundwater or moisture migration through defined crack lines.
- Accessible Crack Paths: Situations where technicians can safely position drilling equipment to intersect the crack trajectory.
PU injection is not a universal treatment for every building defect. Scope assessments focus on confirmed residential and commercial concrete slabs and walls within our verified Kuala Lumpur service areas.
3. When Another Repair Method May Be Needed
Understanding what PU injection cannot do is essential for lasting property maintenance. PU injection is not appropriate for:
- Leaking Plumbing Lines: Pressurized supply pipes or damaged PVC drain lines embedded in concrete cannot be resolved by PU foam; plumbing leaks require pipe repair or replacement.
- Widespread Membrane Failure: When an entire rooftop or bathroom floor membrane has degraded, localized injection may simply redirect water to adjacent unsealed areas. In such cases, surface re-waterproofing is required.
- Surface Drainage Problems: Ponding water caused by improper floor gradients requires screeding and drainage adjustments rather than crack injection.
- Dry Cosmetic Cracks: Non-water-bearing plaster hairline cracks should be repaired with standard skimming and flexible filler.
- Actively Moving Structural Cracks: PU foam provides an elastic water seal, but it does not restore structural strength, reinforce concrete, or prevent load-related structural failure.
If cracks show signs of continuous structural movement, shear displacement, or foundation settlement, we recommend an independent professional structural assessment.
For properties requiring broad surface solutions, roof membranes, or dedicated wet-area treatments, explore our full services as a Waterproofing Contractor Kuala Lumpur or Bathroom Waterproofing Kuala Lumpur.
4. How PU Injection Work Is Assessed and Carried Out
When site conditions and leak diagnostics confirm that polyurethane injection is appropriate, the work follows a controlled, multi-stage procedure:
Initial Site Review & Leak Identification
We evaluate the moisture pattern, examining ceiling stains, weeping walls, or drip points to understand the probable water ingress path and determine whether the leak is plumbing- or rainwater-related.
Access Preparation & Drilling Plan
Technicians determine the crack angle and plan entry points. Holes are drilled at an angle (typically around 45 degrees) to intersect the crack internally within the concrete slab, taking care to avoid embedded conduits where possible.

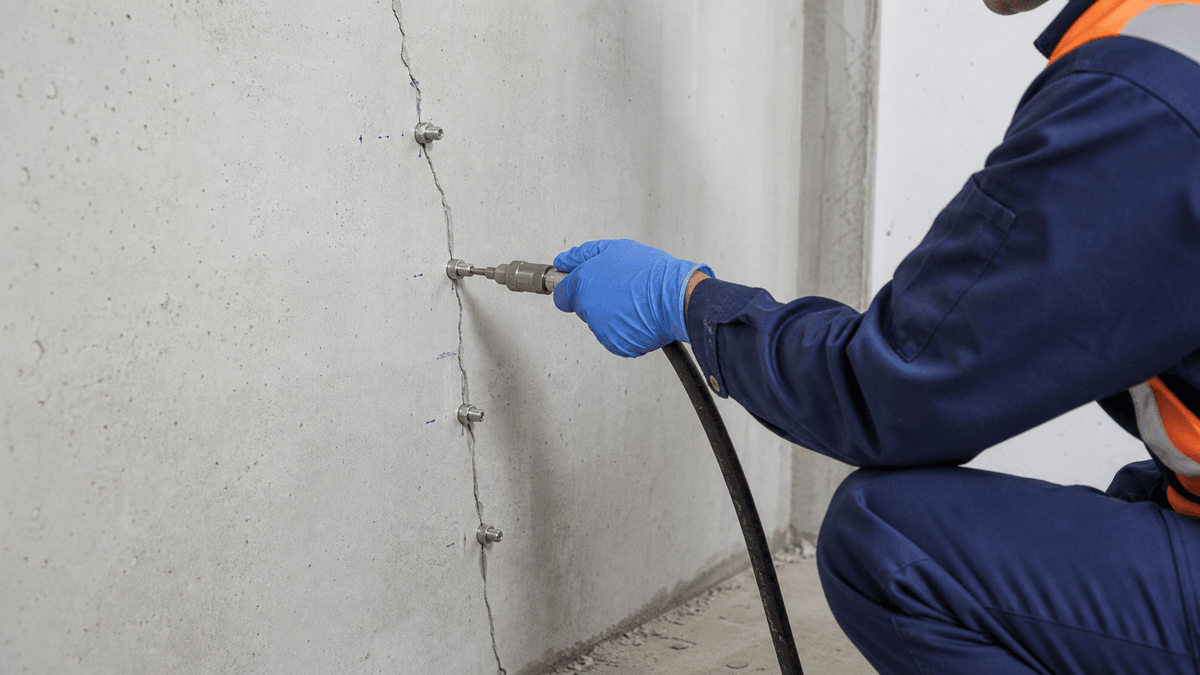

Mechanical Packer Installation
Metal injection ports (packers) fitted with one-way ball valves are inserted into the drilled holes and tightened securely to maintain pressure during injection.

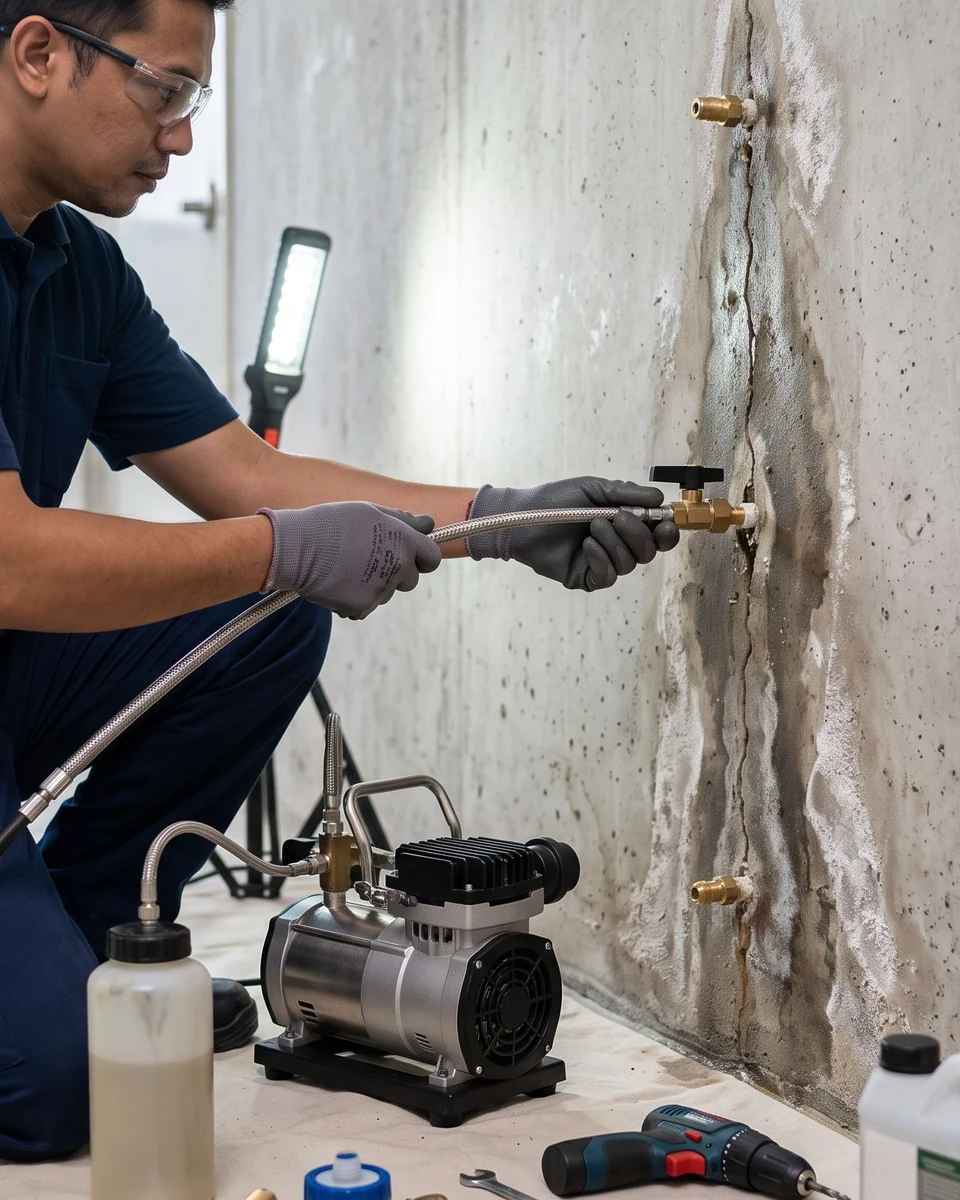

Controlled Polyurethane Resin Injection
Using specialized high-pressure injection pumps, polyurethane resin is injected through the packers. As the liquid encounters water within the void, it expands into a dense, flexible foam that travels along the crack channel to restrict the water pathway.
Curing, Packer Removal & Surface Patching
Once the resin cures, the packers are mechanically removed, excess expanded foam is trimmed flush, and the drill holes are patched with waterproof cementitious mortar.
Follow-Up Inspection
Treated areas are reviewed under normal site moisture conditions to verify that active seepage through the injected crack line has ceased.
PU injection may avoid extensive tile removal or disruptive surface hacking when the leak path, structure, and access conditions suit the method. However, the process still requires precision drilling, equipment access, and clean surface patching.
5. PU Injection Pricing & Quotation Factors
PU injection work is priced primarily on a “per point” basis, corresponding to the number of injection packers installed along the crack path to achieve effective resin penetration.
| Waterproofing Method | Estimated Cost | Application Notes |
|---|---|---|
| PU Injection Grouting | RM 150 - RM 300 per point | Suitable for active concrete cracks in ceilings, slabs, and walls. Minimum call-out fee applies. |
| Clear Nano Penetrative Coating | RM 800 - RM 1,500 per bathroom | Non-destructive surface treatment sealing porous tile grout lines in bathrooms. |
| Traditional Tile Hacking & Re-waterproofing | RM 3,500 - RM 6,000+ per bathroom | Complete bathroom reconstruction including tile removal, new screed, and elastomeric membrane. |
Factors That Affect Your Quotation
- Number of Injection Points: Longer crack paths or intersecting fissures require more packers to ensure complete resin coverage.
- Access and Working Height: High ceilings, tight crawl spaces, or external wall access requiring scaffolding or ladders influence site setup.
- Active Water Ingress Rate: High-pressure active water flow may require faster-reacting dual-component resins or staged injection.
- Substrate & Finishing Requirements: Concrete condition, surface coatings, and the degree of cosmetic patching requested after packer removal.
Check PU Injection Feasibility & Pricing on WhatsApp
Have an active water leak through a concrete ceiling slab, wall, or expansion joint? Send crack photos and your KL location on WhatsApp for immediate feasibility assessment and quotation.
✓ From RM150–RM300/point • Minimally invasive • Seals active water flow without hacking
For broader project scope and surface waterproofing comparisons, consult our Waterproofing Contractor Kuala Lumpur overview.
6. Request Assessment & Quotation in Kuala Lumpur
To receive a clear scope review and quotation for PU injection waterproofing in Kuala Lumpur, send your site details directly to our technical team:
- Property Location: Your address or area in Kuala Lumpur (e.g., Setapak, Ampang, Bangsar, Mont Kiara).
- Affected Area: Indicate whether the issue is a concrete ceiling, wall, RC flat roof, or inter-floor bathroom leak.
- Leak Pattern: When the moisture appears (e.g., during heavy rain, or when the upstairs bathroom is in use).
- Photos & Video: Send clear, well-lit photos or a short video showing the crack line and active water droplets.
- Known History: Mention any previous patching, tile work, or plumbing repairs.
Photos and descriptions provide an initial scope review; an on-site inspection confirms the water source, structural condition, and drilling access before commencing injection work.
Request an Initial PU Injection Scope Review
Send clear photos of the concrete crack or water leak and your location in Kuala Lumpur on WhatsApp. Our team will review the issue and advise on initial feasibility and quotation.
✓ Rapid review within 30–60 mins • Mon–Sat 9am–6pm • SSM & CIDB registered
Related Contracting Services
Frequently Asked Questions
What is PU injection waterproofing?
PU injection is a targeted waterproofing method that pumps liquid polyurethane resin into active water-bearing concrete cracks, joints, or voids. When the resin comes into contact with water, it reacts and expands to form a resilient, watertight foam barrier that blocks the seepage path.
Is PU injection the same as PU grouting?
Yes. In Malaysia construction practice, PU grouting and PU injection commonly refer to the same technique of injecting polyurethane material to seal concrete leaks. However, not all pressure grouting uses polyurethane resin.
When may PU injection be considered suitable?
PU injection is evaluated for active water seepage through accessible concrete cracks, construction joints, RC flat roofs, and concrete slabs such as ceilings directly beneath wet bathrooms.
Can PU injection restore structural strength to cracked concrete?
No. PU injection seals water-bearing cracks and accommodates minor movement, but it does not restore structural capacity or bind load-bearing concrete elements together. Any load-related or structural cracking requires separate structural engineering assessment.
Does PU injection avoid hacking existing bathroom tiles?
PU injection may avoid extensive tile removal when treating inter-floor concrete slab leaks from the underside ceiling. However, the procedure still requires drilling small injection ports and finishing the treated surface.
What factors affect the quotation for PU injection in KL?
Quotations depend on the number of injection points required along the crack path, access and working height, the condition of the substrate, the active water pressure, and finishing requirements. A minimum call-out fee applies.
