Bathroom Waterproofing Kuala Lumpur
Dedicated bathroom waterproofing, toilet leak repair, shower curb sealing, and wet-room waterproofing across Kuala Lumpur and Selangor. From minimally invasive no-hack penetrative treatments to complete membrane replacements with verified 24–48 hour flood ponding tests.
Why Choose RK Reno Solution
Diagnostic Leak Tracing
Thermal and moisture assessment to pinpoint whether seepage originates from failed membranes, defective floor traps, or pressurized supply pipes.
Targeted Waterproofing Systems
Deploying flexible cementitious polymers, liquid polyurethane elastomeric membranes, or non-destructive nano-copolymer sealants matched to your site.
Inter-Floor Strata Coordination
Experienced handling of high-rise condominium management requirements, joint inspection reports, and Strata Management Act 2013 procedures.
Verified Before Retiling
Mandatory 24-to-48 hour water flood ponding test conducted on cured membranes before tiling begins to ensure guaranteed watertightness.
Services Included
Toilet & Bathroom Floor Waterproofing
Complete substrate sealing for master bathrooms, common powder rooms, and guest toilets prone to inter-floor dampness.
Shower Recess & Wall Waterproofing
Multi-coat waterproof membrane applied across shower floors, upturn curbs, and vertical splash walls up to 1,800mm.
Bathtub & Wet-Room Seepage Repair
Remedial perimeter sealing, drainage collar reconnection, and under-tub membrane restoration to halt hidden water accumulation.
Minimally Invasive No-Hack Sealants
Clear deep-penetrating nano-polymer sealants that crystallize inside tile grout and substrate pores without hacking tiles.
High-Pressure PU Chemical Injection
Stopping active ceiling seepage from the lower unit using expanding polyurethane chemical grouting into concrete slab cracks.
Full Bathroom Renovation & Retiling
Turnkey strip-out, tile hacking, cement screeding with correct fall-to-drain slope, dual-layer membrane, and designer tile laying.
Starting Rates & Estimates
No-Hack Penetrative Treatment
Ideal for early-stage grout seepage and surface tile porosity where underlying screed and pipes remain sound.
- Deep-cleaning and mechanical grout preparation
- Penetrative clear nano-copolymer infusion
- Elastic polymer perimeter joint bead sealing
- Completed in 1 day with zero tile destruction
Targeted PU Chemical Injection
High-pressure polyurethane injection performed from the lower-floor ceiling to halt active slab crack seepage immediately.
- Precision rotary drilling along concrete fissures
- Mechanical high-pressure injection port packers
- Hydrophobic expanding PU grout injection
- Immediate water shutoff without touching upper tiles
Complete Hack, Membrane & Retile
Permanent structural restoration for severe membrane failure, hollow tiles, or full bathroom remodeling projects.
- Controlled tile hacking and screed removal
- Multi-layer flexible elastomeric waterproof membrane
- Reinforced corner fiberglass mesh tape at curbs
- Mandatory 24–48 hour water flood ponding test
- New floor and wall tile installation
VERIFIED CONTRACTOR CREDENTIALS
Verified Renovation & Trade Contractor Across KL & Selangor
Solid workmanship, transparent pricing, and responsive communication from an SSM- and CIDB-registered contractor.
15+ Years Experience
Hands-on renovation and multi-trade expertise.
SSM & CIDB Registered
Operated by Aayan Engineering.
KL & Selangor Coverage
Serving Kuala Lumpur and Selangor.
Scope-Based Quotations
Pricing based on agreed project scope.
Direct Scope Discussion
Direct consultation on requirements.
Defect Rectification Terms
Defined by agreed quotation or contract.
Jump to Section (10 Topics)
Reliable Bathroom Waterproofing Contractor in Kuala Lumpur
Bathroom and toilet water leaks represent the single most common cause of property damage and neighbor disputes across condominiums, apartments, and landed homes in Kuala Lumpur and Selangor. Because wet areas endure continuous daily water exposure, thermal expansion, and harsh household cleaning chemicals, conventional waterproofing systems inevitably degrade over 7 to 15 years.
When moisture bypasses the surface tile grout and breaches the concealed waterproofing barrier beneath the screed, water travels through porous concrete slabs along hairline fissures. It commonly emerges on the plaster ceiling directly below, blistering adjoining bedroom paint, corroding internal reinforcement steel bars (rebar), and causing stubborn mold growth.
At RK Reno Solution, we specialize in professional bathroom waterproofing, toilet floor leak repair, shower recess waterproofing, and wet-room waterproofing in Kuala Lumpur. We differentiate ourselves by conducting technical diagnostic assessments before proposing repairs—ensuring you choose the most reliable, cost-effective method between minimally invasive no-hack treatments and complete membrane replacements.
1. Common Symptoms of Bathroom & Toilet Leaks in KL Properties
Water leaks rarely resolve on their own; early diagnosis prevents costly structural spalling and ceiling collapse. Watch for these persistent warning signs:
- Downstairs Ceiling Watermarks & Yellow Stains: Dark, spreading rings or damp patches on the plaster ceiling or concrete soffit directly beneath an upstairs bathroom or toilet.
- Peeling, Bubbling Paint on Adjoining Bedroom Walls: Skirting boards warping, plaster bubbling, or powdery white residue (efflorescence) appearing on bedroom or hallway walls sharing a bathroom partition.
- Persistent Musty Odors & Black Mold: Damp smell that lingers even with regular cleaning, caused by water trapped within saturated sand-cement floor screeds beneath the tiles.
- Hollow or Loose Floor Tiles: Grout lines cracking and washing away, allowing water to pool under hollow tiles and seep through floor trap edges.
- Continuous Water Dripping from Pipe Sleeves: Water actively dripping along PVC sanitary pipe penetrations passing through the intermediate concrete slab.
| Corak Kebocoran | Simptom Di Tapak | Punca Utama Masalah | Rawatan Disyorkan |
|---|---|---|---|
| Bocor Berterusan (24 Jam) | Titisan air laju tanpa henti walaupun bilik mandi tidak digunakan | Paip bekalan air dalam konkrit pecah atau retak | Ujian tekanan paip (pressure test) & pembaikan paip rosak |
| Bocor Semasa Digunakan | Menitis 20–45 minit selepas mandi dan kering semula | Membran kalis air lantai bocor atau simen grout rosak | Rawatan kalis air menyeluruh atau suntikan PU injection |
| Kesan Lembap / Tompok Kulat | Cat siling mengelupas dan bertompok kekuningan | Kebocoran resapan pada bucu sambungan dinding-lantai | Pembinaan semula corner fillet kalis air bertetulang |
2. Bathroom, Toilet & Shower Problem Areas We Treat
A bathroom is not a single uniform surface—it is a complex assembly of joints, drainage connections, and vertical-to-horizontal transitions. Our team treats all specific wet-area leak points:
- Bathroom Floor Waterproofing: Total barrier protection across the reinforced concrete slab to prevent inter-floor water transfer to lower units.
- Waterproofing Shower Walls & Splash Zones: Applying vertical elastomeric membrane up to 1,800mm in shower enclosures to prevent water penetration into dry room partitions.
- Waterproofing Shower Floors & Hob Curbs: Creating continuous, seamless waterproof upturns over shower kerbs and threshold curbs with reinforced fiberglass corner mesh.
- Toilet Floor Waterproofing: Treating water closets, bidet spray areas, and floor trap collars against moisture migration.
- Bathtub Waterproofing & Enclosure Sealing: Resealing perimeter edges, underlying screed trays, and concealed drain traps beneath built-in acrylic and cast iron bathtubs.
- Wet-Room Waterproofing: Open-concept master en-suites and curbless zero-threshold wet rooms requiring high-slope drainage and tanking membranes.
| Zon Kritikal Kalis Air Bilik Mandi | Spesifikasi Aplikasi Lapisan Membran | Pencegahan Resapan Air |
|---|---|---|
| Perangkap Sisa Lantai (Floor Waste) | Membran disapu turun ke dalam paip PVC sedalam 50mm dengan gelang kedap | Menghalang air mandian menyusup masuk antara jubin dan paip sisa |
| Ceruk Mandian (Shower Niche) | Semua bucu dalam ceruk dibulatkan dan dilapisi jaring gentian fiber | Mencegah kebocoran air pancuran meresap ke dalam rongga dinding |
| Tebing Sekatan Basah/Kering (Kerb) | Lapisan kalis air menyelaputi tebing konkrit sebelum jubin dipasang | Mengelakkan air bertakung merembes keluar ke zon kering bilik mandi |
3. Applicable Waterproofing Methods & Chemical Systems
Depending on property type, leak severity, tile condition, and budget, we deploy proven commercial-grade waterproofing systems:
System A: Flexible Cementitious Acrylic Polymer Membrane
- Description: Two-component modified cementitious acrylic slurry roller- or trowel-applied directly onto cleaned concrete screeds.
- Application: The standard specification for new bathroom renovations and full re-tiling projects. Creates a seamless, breathable, elastomeric barrier that bridges micro-cracks up to 2mm.
- Durability: Exceptional adhesion to cement mortar and tile adhesives, compliant with international wet-area waterproofing standards.
System C: High-Pressure Polyurethane (PU) Chemical Grouting
- Description: Mechanical packers are installed into angled drill holes across concrete cracks on the lower-floor ceiling. Hydrophobic PU chemical resin is injected under high pressure (2,000–4,000 psi).
- Application: Stops active running water leaks from the underside without disturbing upstairs bathroom tiles or sanitaryware.
- For more information: Learn about our specialized PU Injection Waterproofing KL services.
System D: Clear Hydrophobic Nano-Copolymer Sealants (No-Hack)
- Description: Solvent- or water-based deep-penetrating fluoropolymer or siloxane sealants applied over existing tiled floors and grout lines.
- Application: Deeply penetrates microscopic pores and crystalline grout matrix, creating an invisible hydrophobic barrier that repels water beads without altering tile appearance.
4. Tiled vs Pre-Tiling Situations: No-Hack vs Complete Tile Hacking
Homeowners often ask whether they can avoid the dust, noise, and cost of hacking tiles. Here is our honest, technical contractor guidance:
| Factor | No-Hack Chemical Waterproofing | Complete Tile Hacking & Membrane Replacement |
|---|---|---|
| Best Suited For | Sound, bonded tiles with localized grout hairline erosion; rapid tenancy repairs; tight budgets. | Aging bathrooms (>10 years); hollow or debonded tiles; extensive sub-floor water saturation; severe slab leaks. |
| Invasiveness | 100% non-destructive; zero demolition, dust, or heavy noise. | Complete hacking of existing floor tiles, wall perimeter tiles, and old screed down to bare concrete. |
| Project Duration | 1 working day (ready for light use within 24 hours). | 5 to 8 working days per bathroom (including curing and water test). |
| Testing | Visual inspection and moisture meter re-check. | Mandatory 24-to-48 hour water flood ponding test before retiling. |
| Cost Range (KL) | RM 800 – RM 1,800 per bathroom. | RM 3,000 – RM 6,000+ per bathroom (scope and tile dependent). |
| Expected Lifespan | 2 to 5 years (maintenance re-application recommended). | 10 to 15+ years with heavy-duty elastomeric membrane. |
Have Questions About Your Specific Bathroom Leak?
Not sure whether your toilet requires tile hacking or can be sealed with clear penetrative treatment? Chat directly with our technical team on WhatsApp. Send photos or short videos of your bathroom floor and ceiling for technical advice.
5. Bathroom Waterproofing Cost in Kuala Lumpur (2027 Price Guide)
Waterproofing costs are quoted transparently based on confirmed scope, bathroom square footage, access conditions, and material selection. Below are current market-aligned price benchmarks for properties across Kuala Lumpur and Selangor:
| Service Scope | Estimated Price (RM) | Key Deliverables & Inclusions |
|---|---|---|
| Minimally Invasive No-Hack Sealant | RM 800 – RM 1,800 / bathroom | Heavy chemical scrubbing, regrouting failed joints, two coats deep-penetrating nano-sealant, perimeter silicone bead. |
| High-Pressure PU Injection (Underside) | RM 150 – RM 300 / point | Drilling angled ports into lower concrete slab, installing steel mechanical packers, injecting hydrophobic PU grout until refuse. |
| Standard Bathroom Hack & Re-Waterproof | RM 3,000 – RM 4,500 / bathroom | Hacking floor tiles and 300mm curb wall tiles, cement screed to fall, 2-coat flexible cementitious membrane, flood test, new floor tiles. |
| Complete Wet-Room Overhaul & Retiling | RM 4,500 – RM 6,500+ / bathroom | Full floor and full-height wall tile hacking, plumbing relocation, dual-coat polyurethane membrane, 48h ponding test, premium homogeneous tiles. |
- Bathroom Floor Area & Height: Larger master bathrooms (e.g. 50–90 sqft) require more membrane and tile area than compact powder rooms (25–35 sqft).
- High-Rise Logistics vs Landed Homes: Condominium service lift bookings, debris bagging, and management security deposits can influence labor overhead compared to ground-floor landed houses.
- Condition of Concealed Plumbing: Corroded galvanized iron pipes or cracked PVC floor trap collars must be replaced during hacking before membrane application.
- Tile Selection & Laying Complexity: Large-format porcelain tiles (e.g. 600x600mm or 600x1200mm) require specialized polymer-modified adhesives and precise mitred joints around drains.
[!TIP] Planning a Complete Bathroom Makeover? If you are remodeling beyond leak repair—such as upgrading vanities, installing new toilet suites, adding glass shower enclosures, or moving plumbing fixtures—explore our dedicated bathroom renovation contractor KL service for full turnkey contracting.
Key Factors That Affect Your Final Quotation:
6. High-Rise Condominiums vs Landed Properties in KL & Selangor
Strata High-Rise Properties (Condos & Apartments)
In Kuala Lumpur high-rises (such as developments across Mont Kiara, KLCC, Bangsar, and Cheras), bathroom leaks inevitably trigger Section 142 of the Strata Management Act 2013 (SMA 2013). Under Malaysian strata law, there is a statutory presumption that an inter-floor leak originates from the upper parcel unless the upper owner can prove otherwise.
- Management Office (JMB/MC) Protocols: Building management will inspect the lower unit and issue a Certificate of Inspection (Form 28).
- Work Hour Restrictions: Renovation and hacking noisy hours are strictly limited to weekdays (typically 9:00 AM to 5:00 PM), with work strictly prohibited on weekends and public holidays.
- Debris Disposal: Concrete rubble must be systematically packed into heavy-duty gunny sacks and transported via designated service lifts to avoid damaging common areas.
Landed Residential Homes (Terrace, Semi-D & Bungalows)
In landed double-storey terrace houses across Setapak, Ampang, Kepong, Petaling Jaya, and Subang Jaya, bathroom leaks can seep through concrete floor joists into ground-floor plaster ceilings or structural brick walls.
- Structural Settling: Foundation movement over time can cause micro-fissures in rigid mortar beds, tearing non-flexible waterproofing membranes.
- Flexible Tanking: We apply fiber-reinforced flexible membranes with up to 300% elasticity to absorb structural thermal expansion and prevent recurrent leaks.
7. Our 6-Step Waterproofing & 24–48h Flood Testing Process
Every successful wet-area repair depends on disciplined execution and verified water tests:
- Photo Review & Site Assessment: You send photos on WhatsApp; our estimator reviews the symptoms and conducts on-site moisture level testing.
- Substrate Preparation & Cleaning: For full restorations, existing tiles and old screed are hacked down to solid concrete, cleaned of dust, and vacuumed thoroughly.
- Plumbing & Floor Trap Inspection: Drain collars are inspected, repaired, and primed to prevent edge seepage around sanitary pipes.

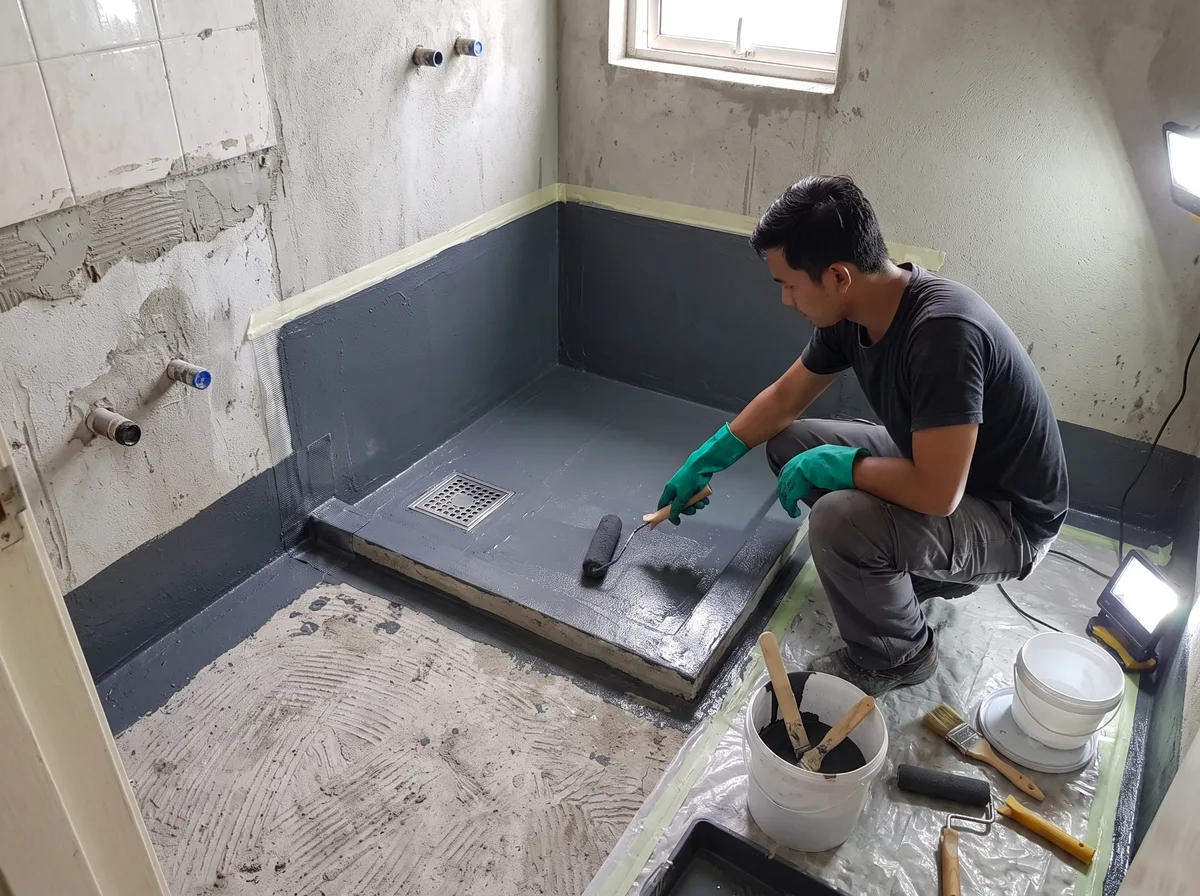

- Multi-Layer Membrane Application: Two cross-directional coats of flexible cementitious acrylic or polyurethane membrane are applied across the floor and 300mm up the walls (1,800mm in shower enclosures). Corners are reinforced with alkali-resistant mesh tape.
- Mandatory 24–48 Hour Water Flood Ponding Test: The bathroom floor is plugged and filled with 50mm of standing water for 24 to 48 hours. The lower-floor ceiling is inspected jointly to ensure watertight integrity before retiling.
- Tile Laying, Grouting & Handover: Floor tiles are laid using water-resistant C2-grade tile adhesive, grouted with anti-fungal epoxy grout, and handed over with documented project terms and inspection sign-off.
8. Service Areas Across Kuala Lumpur & Selangor
Our mobile waterproofing crews operate daily across all major residential and commercial zones in Greater KL:
- Kuala Lumpur City & Central: Setapak, Wangsa Maju, Sentul, Jalan Ipoh, Titiwangsa, Bukit Bintang, KLCC, Brickfields.
- Western KL & Mont Kiara: Mont Kiara, Sri Hartamas, Dutamas, Segambut, Bangsar, Damansara Heights, Taman Tun Dr Ismail (TTDI).
- Eastern & Southern KL: Cheras, Ampang, Maluri, Pandan Indah, Sri Petaling, Bukit Jalil, Kuchai Lama, Sungai Besi.
- Northern KL: Kepong, Jinjang, Menjalara, Selayang, Batu Caves.
- Selangor Connections: Petaling Jaya, Subang Jaya, Shah Alam, Puchong, and Damansara.
Our Contracting Process
- Step 1
Send Photos on WhatsApp
Send clear photos of the leaking area, damaged ceiling below, or floor tile conditions for a preliminary scope review.
- Step 2
Site Inspection & Moisture Testing
Our technical specialist inspects the wet area, checks floor trap collars, and uses moisture meters to determine the leak mechanism.
- Step 3
Transparent Written Quotation
Receive an itemized scope comparing non-destructive vs membrane replacement options tailored to your property condition.
- Step 4
Professional System Application
Skilled technicians execute the agreed waterproofing treatment, whether clear nano-sealant, PU injection, or multi-layer membrane.
- Step 5
24–48 Hour Water Ponding Flood Test
For full membrane installations, the floor is flooded with water and monitored for 24 to 48 hours to confirm zero seepage.
- Step 6
Final Reinstatement & Handover
Tiles and sanitary fittings are reinstated neatly, the site is cleaned, and documented project terms and inspection sign-off are delivered.
Locations Served across KL & Selangor
Professional renovation, repair, and engineering trade services available across Kuala Lumpur and Selangor.
Frequently Asked Questions
Can a leaking bathroom in Kuala Lumpur be repaired without hacking tiles?
Yes, in many cases involving failed grout lines or porous tiles, minimally invasive clear hydrophobic nano-polymer sealants can penetrate and seal floor joints without hacking. Additionally, active concrete seepage through lower-floor ceilings can often be stopped using high-pressure PU chemical injection. However, if the underlying structural waterproofing membrane has completely failed or tiles are hollow, full tile removal and membrane replacement is recommended.
How much does bathroom waterproofing cost in Kuala Lumpur and Selangor?
In Kuala Lumpur, no-hack penetrative chemical waterproofing typically ranges from RM 800 to RM 1,800 per bathroom. Targeted high-pressure PU chemical injection costs between RM 150 and RM 300 per injection point. A comprehensive bathroom overhaul—involving hacking existing tiles, screeding, applying multi-layer elastomeric waterproofing membrane, a 24-to-48 hour water flood ponding test, and new tile laying—generally ranges from RM 3,000 to RM 6,000+ depending on bathroom dimensions and sanitaryware scope.
What causes water to leak through the downstairs ceiling from an upstairs bathroom?
Inter-floor bathroom leaks are usually caused by: 1) degradation of the elastomeric waterproofing membrane beneath the floor tiles, 2) defective or detached floor trap drain collars, 3) worn perimeter grout and silicone seals around shower screens and bathtubs, or 4) leaking concealed water supply pipes inside wall chases or floor slabs.
Who is responsible for an inter-floor bathroom leak in a Kuala Lumpur condominium or apartment?
Under Section 142 of Malaysia's Strata Management Act 2013 (SMA 2013), an inter-floor water leak is presumed to originate from the upper parcel unless the upper-floor parcel owner can prove otherwise. Management corporations (JMB/MC) will issue a Certificate of Inspection (Form 28) following a joint site inspection to determine the source and verify repair responsibilities.
How long does a bathroom waterproofing and re-tiling project take?
A non-destructive no-hack sealant or PU injection treatment takes only 1 to 2 days with rapid curing. A full overhaul involving tile hacking, multi-layer liquid or cementitious membrane coating, mandatory 24-to-48 hour flood ponding testing, and new tile reinstatement typically requires 5 to 8 working days per bathroom.
Do you perform a water ponding flood test after applying waterproofing?
Yes. For all membrane replacements and major wet-area restorations, we conduct a mandatory 24-to-48 hour water flood ponding test. The bathroom floor is filled with water to test all joints, corners, and floor trap collars to verify watertight integrity before tile installation begins.
Send Photos for Initial Scope Review
Experiencing toilet seepage, shower leaks, or ceiling dampness? Send photos of the wet area and downstairs ceiling on WhatsApp for an initial technical assessment and quotation.
